Almen Gauge
Request a Free Quote

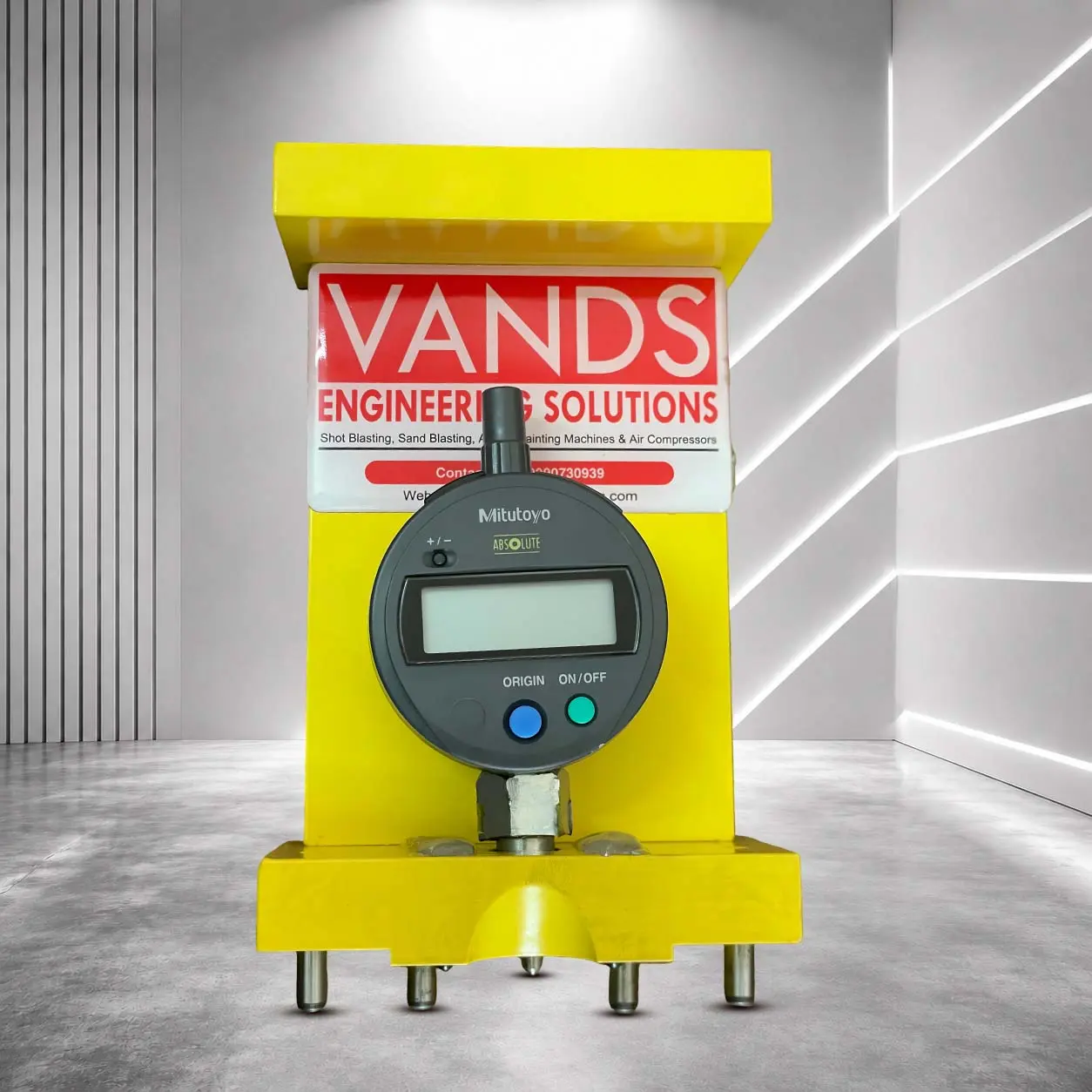

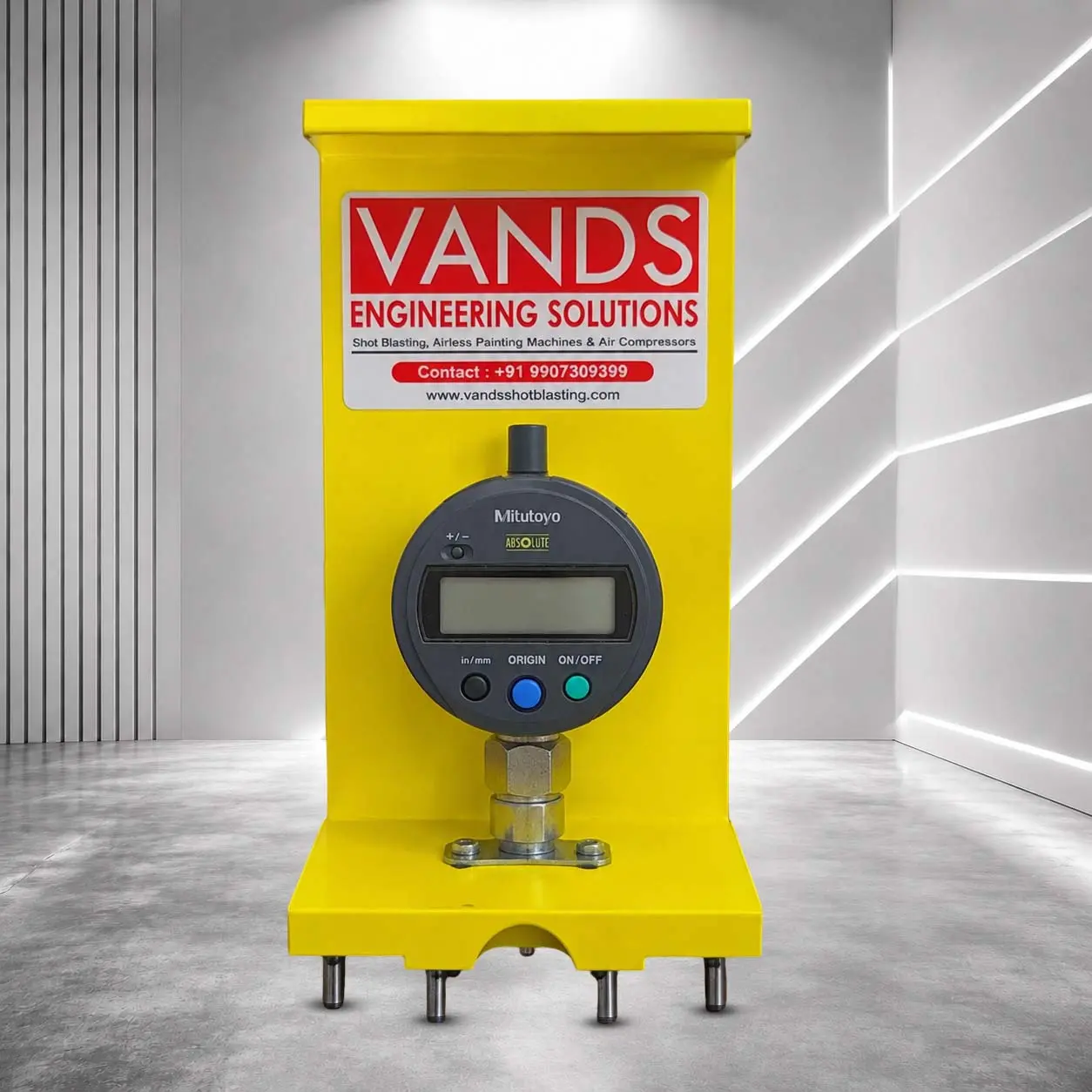

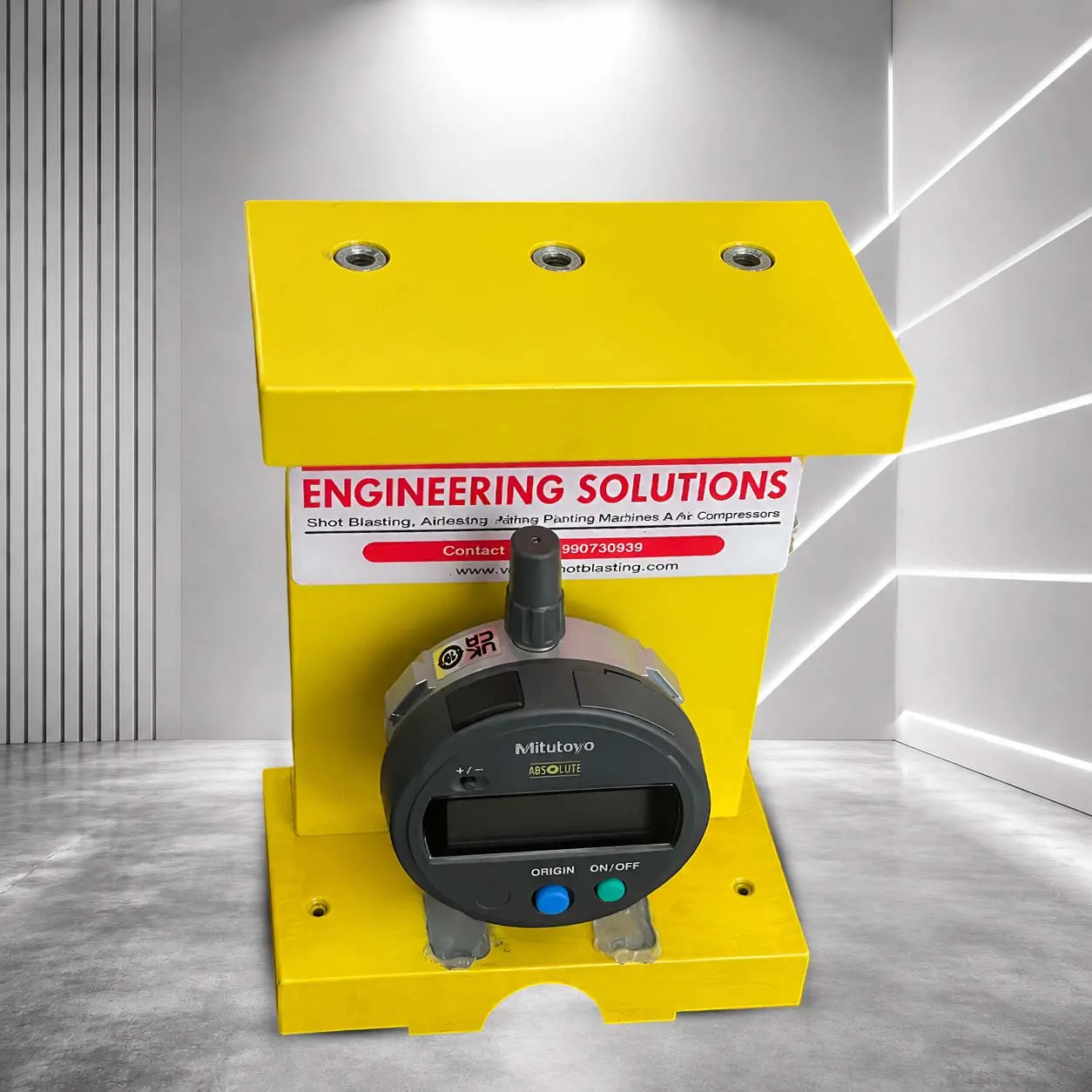

Almen Gauge
Measuring Range
0.001 mm / 0.001 mm
Gauge
Almen gauge with guides
Holding
Magnetic strip holding
Make
Mitutoyo make gauge
About Our Product Almen Gauge for Accurate Shot Peening Intensity Measurement
Shot peening only works if the intensity is right. Too little, and the compressive stress layer doesn't go deep enough to actually improve fatigue resistance. Too much, and you risk damaging the surface instead of strengthening it. There's no way to judge this by eye, which is exactly why an Almen Gauge exists — it gives you a precise, repeatable way to measure peening intensity before a part goes anywhere near production.
Vands Engineering Solutions manufactures and supplies Almen gauges and related accessories for shot peening quality control across India. As one of the established Almen Gauge Manufacturers in India, we build our gauges to hold the kind of precision that aerospace, automotive, and metalworking industries actually demand, since even a small measurement error here can mean a part doesn't meet specification.
What Is an Almen Gauge?
An Almen gauge is a precision measuring instrument used to check the arc height of an Almen strip after it's been shot peened. When one side of the strip gets peened, the compressive stress introduced makes it curve slightly, similar to how a bimetallic strip reacts to heat. That curvature, called the arc height, is measured with the gauge, and it directly reflects how intense the peening process was.
This test is standard practice across industries that rely on shot peening to improve component fatigue life, and it's referenced in specifications like SAE J442, AMS2430, and MIL-S-13165. Almost every aerospace, automotive, or rail component that calls for shot peening will specify an exact Almen intensity range, not just a general instruction to "peen the part," which is why accurate gauge readings matter so much.
Vands Engineering Solutions Top Benefits of Using a Quality Almen Gauge
Accurate, Repeatable Readings
1. Measures arc height with the precision needed to meet industry specifications
2. Gives consistent results across repeated tests on the same production line
3. Reduces the risk of accepting parts that don't actually meet the required intensity
2. Gives consistent results across repeated tests on the same production line
3. Reduces the risk of accepting parts that don't actually meet the required intensity
Supports Quality Control and Compliance
1. Helps confirm shot peening intensity falls within the range set by the governing specification
2. Provides measurable data that can be documented for quality records and audits
3. Reduces the chance of under-peened or over-peened components reaching final assembly
2. Provides measurable data that can be documented for quality records and audits
3. Reduces the chance of under-peened or over-peened components reaching final assembly
Easy to Use on the Shop Floor
1. Straightforward strip placement and reading process
2. Doesn't require extensive training to operate correctly
3. Fits into routine quality checks without slowing down production significantly
2. Doesn't require extensive training to operate correctly
3. Fits into routine quality checks without slowing down production significantly
Works with Standard Almen Strip Types
1. Compatible with A, N, and C type Almen strips depending on peening media and intensity range
2. Suits both cast shot and cut wire shot peening processes
3. Flexible enough for facilities running multiple types of peening work
2. Suits both cast shot and cut wire shot peening processes
3. Flexible enough for facilities running multiple types of peening work
Key Features of the Almen Gauge
keeps the Almen strip firmly in place during measurement, so readings stay accurate and consistent.
help position the strip correctly every time, reducing measurement error from misalignment.
built with the tight tolerances that Almen intensity testing genuinely requires.
designed to hold up to repeated daily use in a production or lab environment.
digital gauges offer quicker, more direct readings for facilities running high test volumes.
supports the full range of Almen strip standards used across different peening applications.
Applications Where an Almen Gauge Is Used?
Aerospace Manufacturing
Verifying shot peening intensity on critical structural components, where fatigue life requirements are strict and well documented.
Automotive Component Manufacturing
Checking peening intensity on springs, gears, and other high-stress parts where fatigue resistance directly affects component life.
Metal Finishing and Surface Treatment Facilities
Routine quality checks during shot peening processes across a range of industrial components.
Rail and Heavy Engineering
Confirming peening intensity on components subject to repeated stress cycles, where component failure carries serious safety consequences.
Why Buyers Choose Vands Engineering Solutions
Precision Manufacturing
gauges built to the tolerances that Almen testing standards genuinely require.
Pan-India Supply
delivery across Delhi NCR and buyers nationwide.
Tested Before Dispatch
every gauge checked for accuracy before it reaches you.
Transparent Pricing
honest quotes, no inflated numbers.
Compatible Accessories
Almen strips and strip holders available alongside the gauge itself.
As one of the trusted Almen Gauge Suppliers in India, we work with aerospace suppliers, automotive component manufacturers, and metal finishing facilities that treat peening intensity measurement as a genuine quality requirement, not a formality.
Frequently Asked Questions
It measures the arc height of an Almen strip after shot peening, which tells you how intense the peening process was. This reading is compared against a specification range to confirm whether a component has been peened correctly, making it a core part of quality control in shot peening operations across several industries.
An unpeened Almen strip is first placed on the gauge with the dial set to zero. After peening, the strip curves slightly due to compressive stress, and this same strip is placed back on the gauge to measure that curvature, called the arc height, which is read directly off the gauge’s dial or digital display.
Almen strips come in three types — A, N, and C — each suited to different peening intensities and media. Type A is commonly used with cast shot or cut wire shot for medium-intensity work, Type N suits glass bead or ceramic bead peening at lower intensities, and Type C is thicker, used more rarely for higher-intensity applications.
If peening intensity is too low, the compressive stress layer won’t be deep enough to meaningfully improve fatigue resistance, so the part won’t perform as intended even though it went through the process. If it’s too high, it can damage the surface or cause excessive material removal, which can actually reduce the fatigue life it was meant to improve.
Almen strip and gauge testing is referenced in specifications like SAE J442, AMS2430, and MIL-S-13165, among others. Industries like aerospace and automotive typically call out an exact Almen intensity range in their component specifications, and the gauge is what confirms whether the actual peening process met that requirement.
A digital Almen gauge generally offers faster, more direct readings and can reduce reading errors compared to a standard analog dial gauge. That said, standard gauges remain widely used and accepted across the industry, so the right choice often comes down to testing volume and whether digital record-keeping is a priority for your facility.
You can buy directly from Vands Engineering Solutions, a trusted Almen gauge manufacturer and supplier in India, with delivery across Delhi NCR and pan-India. We also supply compatible Almen strips and strip holders, so you can source everything needed for peening intensity testing from one place.
Ready to Get a Quote?
Whether you need a single Almen gauge for occasional testing or a full setup for regular production quality checks, we can help you find the right fit for your peening process.
