2k Injection Grouting Machine
Request a Free Quote

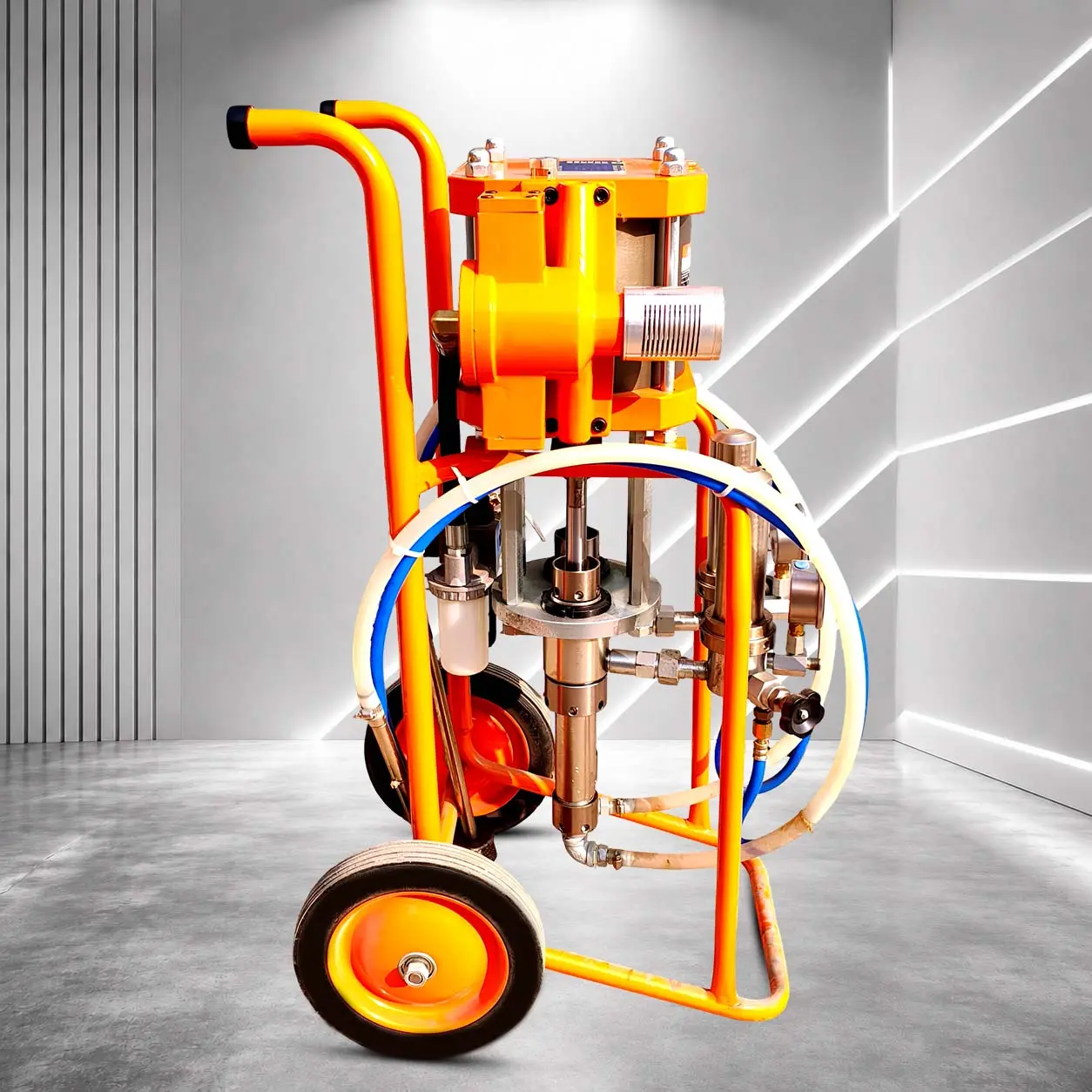

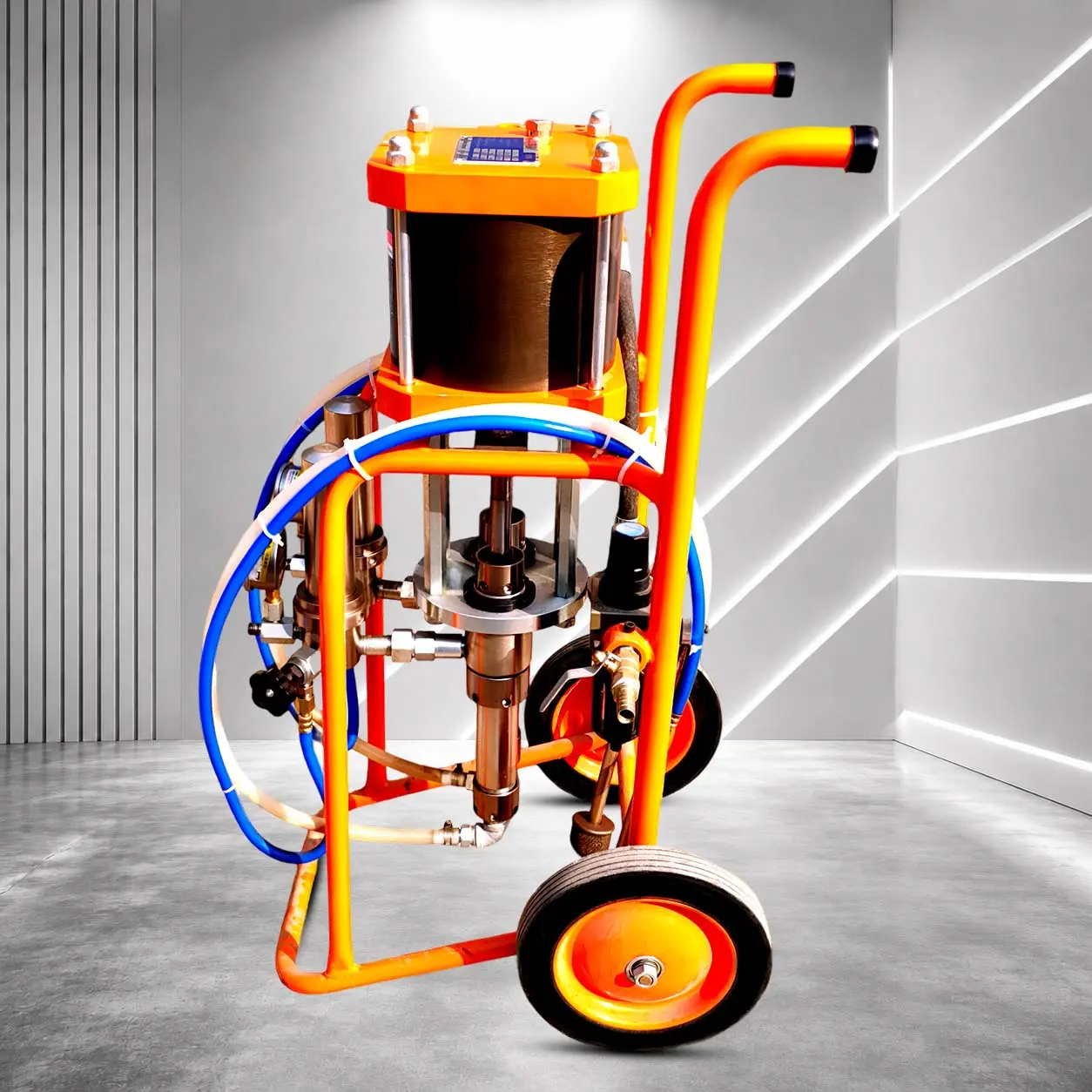

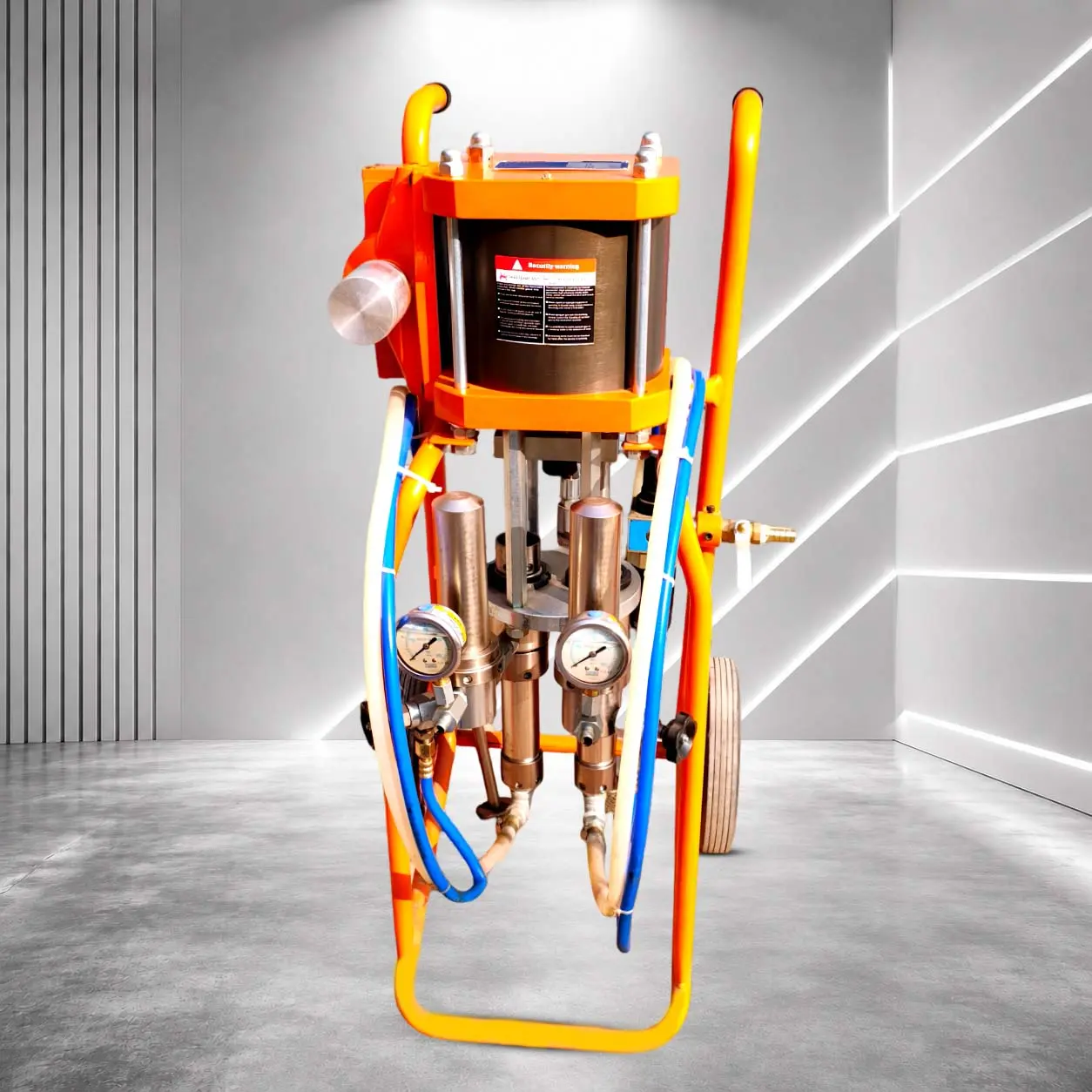

2K Injection Grouting Machine
| Specification | Value | Value |
|---|---|---|
| Pressure Exchange Rate | 43:1 | N/A |
| Flow Rate | 15 Ltrs/min | 8 Ltrs/min |
| Compress Air (Bar) | 3–6 Bar | N/R |
| Stroke (mm) | 100 | 80 |
| Mixing Ratio | 1:1 | 1:1 |
| Static Mixer | 3 Point Type | 3 Point Type |
| Flushing Pump | Diaphragm Type | Electric |
| Weight of the Whole Machine (Kg) | 71 (approx.) | 70 (approx.) |
About Our Product 2K Injection Grouting Machine for Concrete Crack Repair and Waterproofing
Concrete cracks, leaking basements, and weak construction joints are problems every contractor and structural repair engineer has faced. Traditional grouting methods are slow, messy, and often give inconsistent results because mixing two components by hand rarely produces the exact ratio the job needs. A 2K Injection Grouting Machine addresses this right at the source by injecting resin directly into the crack or void, sealing it and restoring strength before things get worse.
Vands Engineering Solutions manufactures and supplies these grouting machines for structural repair, waterproofing, and rehabilitation work across India. As one of the established 2K Injection Grouting Machine Manufacturers in India, we build machines that give contractors and applicators the mixing accuracy and steady output this kind of repair work needs.
What Is a 2K Injection Grouting Machine?
"2K" simply means two-component. A 2K injection grouting machine mixes and injects two reactive materials — usually a resin and a hardener, or a base and a catalyst — at a set ratio into cracks, voids, and joints in concrete. The components stay separate right up until the point of injection, where they combine and start reacting, filling the crack and curing into a strong, often watertight seal.
This is a step up from single-component grouting, where the resin reacts on its own once it touches air or moisture. Two-component grouting gives more control over how the material cures and how strong the final seal turns out, which is why it's the go-to method for PU and epoxy injection work in structural repair. We have different types available, you can choose from pneumatic, manual, or electric 2K Injection Grouting Machine from us.
Vands Engineering Solutions Top Benefits of Using a 2K Injection Grouting Machine
Accurate, Consistent Mixing
1. Meters both components at a fixed ratio, every time
2. Takes the guesswork out of mixing resin by hand
3. Avoids patchy curing and weak spots in the seal
2. Takes the guesswork out of mixing resin by hand
3. Avoids patchy curing and weak spots in the seal
Faster Repair Work
1. Keeps pace with resins that react quickly once mixed
2. Covers multiple cracks across a structure faster than manual mixing ever could
3. Cuts down the time spent on each repair point
2. Covers multiple cracks across a structure faster than manual mixing ever could
3. Cuts down the time spent on each repair point
Less Material Wastage
1. Components stay separate until they're actually needed
2. Less resin lost to curing before it's used
3. A real cost saving, since PU and epoxy resin aren't cheap
2. Less resin lost to curing before it's used
3. A real cost saving, since PU and epoxy resin aren't cheap
Reliable Results, Every Time
1.Gives a stronger, more even seal than hand-mixed application
2.Restores structural integrity in cracked concrete
3. Works for both dry structural cracks and water-bearing joints
2.Restores structural integrity in cracked concrete
3. Works for both dry structural cracks and water-bearing joints
Key Features of the 2K Injection Grouting Machine
keeps the mix consistent from the first injection right through to the last.
lets the operator match injection pressure to crack width and material type.
light enough to carry between floors or move across a site, useful on jobs that shift location often.
built to handle repeated use on demanding repair and waterproofing work without giving up mid-job.
doesn’t need extensive training to operate correctly.
covers the two most common resin types used in structural crack repair.
Applications Where a 2K Injection Grouting Machine Is Used
Structural Repair and Rehabilitation
Sealing cracks in beams, columns, slabs, and foundations, and restoring strength in aging concrete before deterioration goes any further.
Waterproofing Projects
Sealing water-bearing cracks and joints in basements, retaining walls, and water-retaining structures such as tanks and reservoirs — PU resin's expanding, hydrophobic nature suits this kind of work particularly well.
Infrastructure and Civil Engineering
Crack and joint sealing on bridges, flyovers, tunnels, and other infrastructure, where structural durability isn't something you can compromise on.
Construction and Renovation
Fixing cracks that turn up during construction or renovation before they grow into a bigger structural or waterproofing headache later.
Why Buyers Choose Vands Engineering Solutions?
Every Machine Tested Before Dispatch
checked for proper function, so you're not troubleshooting a new unit on your first job.
Built for Repeated Site Use
sturdy construction that takes the wear of frequent repair and waterproofing work.
Pan-India Delivery
supply reaching Delhi NCR and buyers right across the country.
Honest Pricing
no inflated quotes dressed up as discounts.
Support You Can Actually Reach
spare parts, maintenance guidance, and technical questions answered by people who know the equipment.
We’re also known as one of the trusted 2K Injection Grouting Machine Suppliers in India, working with contractors, waterproofing specialists, and structural repair teams who need equipment they can depend on job after job.
Frequently Asked Questions
It mixes and injects two-component resins — usually PU or epoxy — into cracks, voids, and joints in concrete for structural repair and waterproofing.
It means two-component. The machine mixes two separate materials, typically a resin and a hardener, at a controlled ratio right at the point of injection.
PU resin expands on contact and works well for sealing water-bearing cracks flexibly. Epoxy resin cures rigid and is mainly used where structural strengthening is the goal, in dry cracks.
Yes, that’s actually one of its most common uses — injecting PU resin into cracks and joints in basement walls and floors to stop water from getting in.
Clean the mixing components and hoses thoroughly after every use — cured resin left inside can block the system. Check the seals and pressure settings from time to time, and keep the machine stored somewhere dry.
Ready to Get a Quote?
If you're looking for a dependable 2K injection grouting machine for structural repair, waterproofing, or rehabilitation work, we can help you find the right fit for your project.
